| CPU | Intel® Core i3, Core i5 (optional) |
| RAM | 4GB DDR4,(customizable) |
| Internal memory | SSD:64GB,128GB,256GB(optional) |
| Operation system | Windows 7/8/10,Linux, Ubantu |

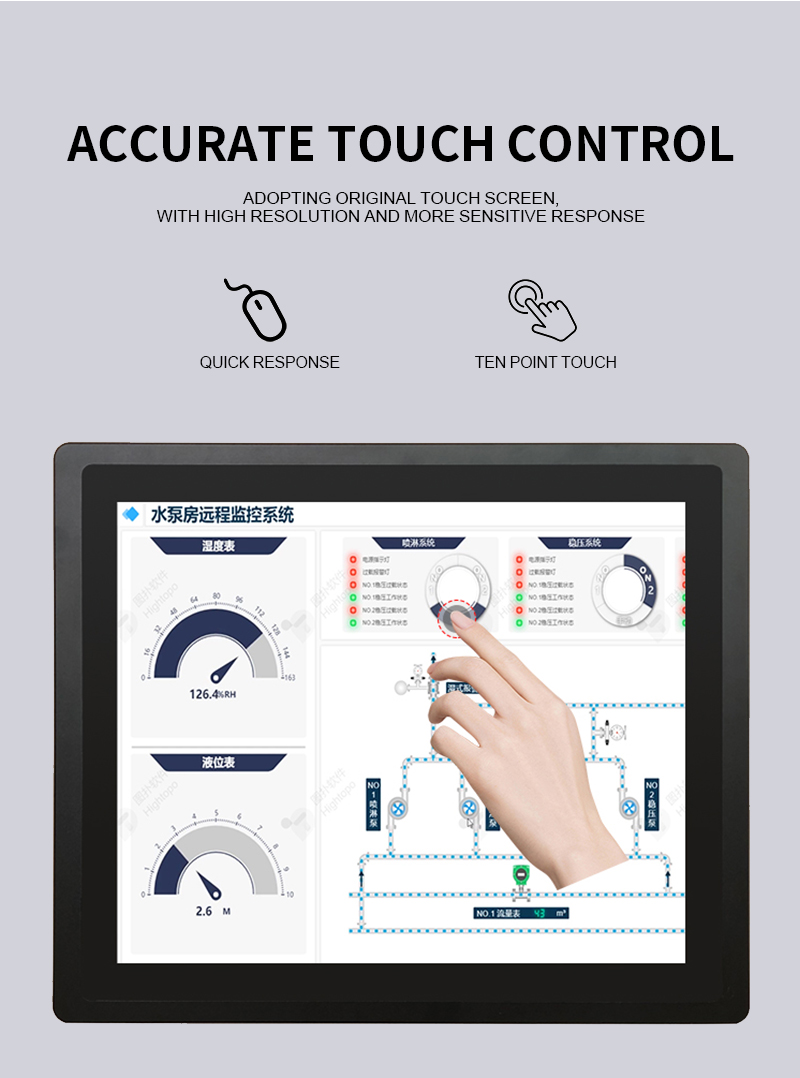

| Touch screen | 10-Point capacitive touch |
| Resolution | 1280*800 |
| Display mode | Normally black |
| Viewing angle | 85/85/85/85(L/R/U/D) |
| Contrast ratio | 800 |
| Luminance | 250cd/m2 |
| Aspect Ratio | 16:10 |
| WiFi | optional |
| I/O Interface | 1:6×USB,1×Lan(RJ45),2 x COM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC 2:4×USB,2×Lan(RJ45),2 xCOM(RS232/Serial),1×VGA/HDMI/Audio OUT/POWER DC |
| External Power Supply | AC 100 - 240V |
| Card slot | SD card |
| Power consumption | ≤18W |
| Mounting (options) | 1) provide wall brackets for wall-mounting, VESA 100×100mm |
| 2) provide stable metal holder to support the monitor |
| Working voltage | DC 12V |
| PC |
| CPU | Intel® Celeron J1900 2.0GHz, Quad cores, fanless |
| Intel® Core i3-3217U 1.8GHz dual cores, with fan |
| Intel® Core i5-3317U 1.7GHz dual cores, with fan |
| Memory | 2G DDR3 ( Max. 8G) |
| Hard Drive Optional | SSD: 32GB,64GB,128GB, 256GB |
| HDD: 160GB,320GB,500GB,1TB |
| Graphics | CPU Integrated graphics HD Graphics and support 1080p HD photo quality |
| Audio | Realtek ALC662, High Definition Audio (HD), Line in, Line out |
| Network | 1×Realtek RTL 8111F Gigabit Ethernet controller |
| Wifi | Optional |
| 4G module | Optional |
| I/O Interface | 2×USB2.0, 2×USB3.0,1×Lan(RJ45),1 x COM(RS232/Serial), 1×VGA/HDMI/Audio OUT/POWER DC |
| Opetation System | Windows 7/8/10/Linux |
| LCD panel |
| Panel size | 23.6" (16:9) |
| Resolution | 1920x1080 |
| Brightness (cd/m²) | 300 |
| Response time | 15ms |
| Contrast ratio | 1000:1 |
| View angle | 89°/89°/89°/89° (R/L/U/D) |
| Touch panel |
| Touchscreen Type | 10 points Projected capacitive touch |
| Touch Interface | USB |
| Touch response time | <8ms |
| Luminousness | 75-85% |
| Power Supply |
| External Power Supply | AC 100 - 240V |
| Working voltage | DC 12V |
| Power consumption | ≤18W |
| Operating Environment |
| Temperature range | operating: -25 to 75°C, storage :-30 to 80°C |
| Relative humidity | 5%~95% @ 40° C, non-condensing |
| Vibration | 5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| Packing Details |
| Accessories | Power adapter, wall mounting bracket |
| Other |
| Mounting (options) | 1) Wall brackets for wall-mounting, VESA 100×100mm |
| 2) Metal desl stander to support the PC |
| 3) Open frame mount kits( left and right side) to hold the PC |
| 4) Embedded installation, 1 sets screws provided |
| Certification | CE, FCC |
| Warranty | 1 year warranty |
* Built-in pearl cotton + thickened carton + wooden case
Guangzhou Bems Electronics Co.,Ltd. was founded in 2012. We focus on designing, researching and developing,
manufacturing and selling advertising player,digital signage,all in one pc,touch screen kiosk,bus monitor,TV,LCD/LED
monitor and so on. We have more than 1000pcs of self-developed designs and molds for you to choose from. We
release at least 10 new products monthly to meet the latest market trends. With our rich experience and considerate
services, we have been recognized as a reliable supplier for many international buyers. We operate our in-house
facilities to work on your OEM/ODM projects, enabling us to meet your customized requirements. With an annual
production capacity of 10,000,00pcs, we can fill your bulk orders with ease.
To ensure quality, we have more than 10 QC members to carry out strict inspection at each stage: incoming inspection
(IQC), in-process inspection (IPQC) and final inspection (FQC).
We have also introduced machines which allow us to make products that meet international standards. Our products
sell well in domestic and international markets, such as the USA, and are favorably appraised by clients. To benefit
from our strong OEM/ODM capabilities and considerate services, contact us today. We will sincerely create and share
success with all clients.
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2012, ten years factory history. Guangzhou Bems Electronics Co., Ltd.,
located in Guangzhou, Panyu district.
2. How can we guarantee quality?
1 years quality guarantee ,Lifelong maintenance
3.what can you buy from us? function ?
for playing various advertising pictures,videos and so on. It can realize the function of split-screen broadcasting,
and multiple commercial advertisements can play together. sound quality is clear, adjustable. It can be remote
release control, also can play directly U disk.
4. Why should you buy from us not from other suppliers?
Guangzhou Bems Electronics Co., Ltd., located in Guangzhou, Panyu district. our main products are: Digital signage,
advertising player,video wall,LCD LED TV etc. we have our own designers and CNC machine,this makes us supports
customized design.
5. Delivery time?
Conventional product in 3-7 working days, Customized products in 15-20 working days.
6. Are you manufacturer(factory)?
Yes, we're. Also OEM/ODM service available here.
7. What's your MOQ?
One sample can be provided first for evaluation. Any quantity is welcome here for non-customized products. As per
customized products, please contact us for further confirmation.
8. What kinds of payment methods does your company accept?
Most of methods accepted here, such as T/T, L/C, Western Union, Credit Card, MoneyGram,etc.
After Sales Service
Warranty principle
1. If the purchased goods have performance faults that are not artificially damaged within the warranty period
of one year, they can be guaranteed free of charge.
2. Free services during the warranty period include:
1) Accessories remote control, etc
2) The mother board, power board, power adapter and other natural faults of the hardware
3) CMS software system operation, WiFi failure, etc
The following conditions are not covered by the warranty and require paid services
1. Dismantle the machine by oneself, misuse the power supply,
install the software used by the mismatched machine motherboard, etc.
2. Beyond the valid warranty period and scopeAll artificial damage.
3. Damage caused by failure to use and maintain according to the instructions for the use of goods
4. Damage caused by any force majeure
5. Damage caused by accidental or natural loss. Such as immersion in water, cracking and damage, wear and scratch, etc
6. Damage, deformation, scratch and other appearance defects caused by personal installation and use after signing
7. Failure and damage caused by other non commodity design, manufacturing, quality and other problems
