Universal HD-3566S LCD Android Motherboard Smart LCD Advertising
Screen TV Board
Product Parameter
Item | LCD Screen Android Motherboard |
| Brand | BENSHI本狮 / bems |
| Model | HD-3566S |
| CPU | RK3566, Quad-core, the highest frequency 1.8GHz |
| Operation System | Android 11.0 |
| Memory | DDR3, 2GB by default (4G Optional) |
| Storage | eMMC 16GB supports 32GB, support U-disk or TF Card expansion |
| Video | Support AVI, RMVB, MKV, WMV, MOV, MP4, DAT, VOB, PMP, MPEG, MPG,
FLV, ASF, TS, TP, 3GP.MPG.etc |
| Image | Support various image formats such as JPG, BMP, PNG |
| Foftware | Comes with Signworld CMS software, supports multiple playback modes
such as looping. Software timing, and interstitial |

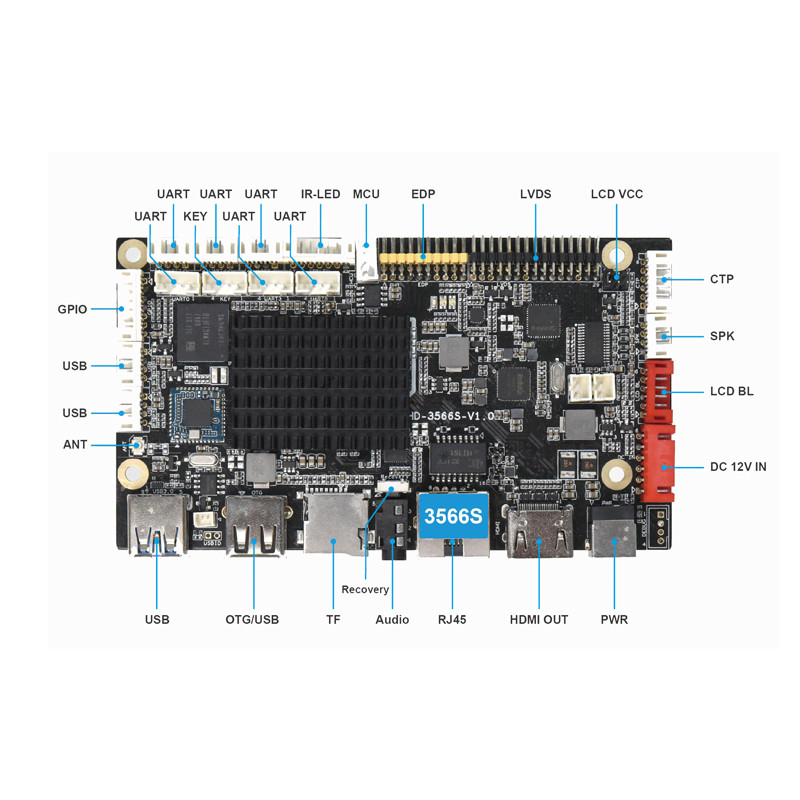

| Extenion Ports | 1*USB2.0 HOST,1*USB2.0 OTG, 2 way extended USB ports, 6*UART,
1*DEBUG, 1*MCU, 5*IO input and output control, can be used for key
scan control |
| Touch Screen | Support USB multi-point infrared touch, multi-point capacitive
touch, multi-point nano fim touch, multi-point sound wave Touch,
muiti-point optical touch and so on |
| Network | 100 Mbps Ethernet, Wi-Fi, Bluetooth 4.2, support optional 4G |
| Audio | Support standard left & right channel line output; support 3.5mm
audio output interface |
| Display Interface | 1*LVDS interface (single / dual, 6-bit / 8-bit), support 3.3V / 5V
/12V power supply, 1*EDP interface; 1*HDMI 1.4 interface, support
4K output |
| RTC | Display tnterface Built-in real-time ciock function |
| Power | DC 12V |
| Use/Application | advertising publish, retail store, shopping mall, display of
dishes, welcome display, self-service business, exhibition hall,
wayfinding, airport, subway, elevator, Restaurant & Hotel Supplies,
education, medical treatment, supermarket, bus station, hospital media company, software cpmpany,
Construction company, government project |
| Key Words | lcd digital signage, vending machine, digital signage and displays, tv, tv smart,
monitor, advertising screen, advertising equipment, software,
display screen, touch screen, lcd panel, led screen, totem,
advertising display, digital totem kiosk, advertising player, ad
player kiosk |
Equipment Function
1. Support U disk playback, play pictures, videos, text scrolling,
split screen playback
2. The device supports network cable connection, WiFi
connection,or4G/5G connection
3. Remote release picture,video,website...for mobile phone/computer
4. Supports multiple periods of time automatic switching on/off
function in a day.
5. Provide CMS software,Term of use (one year), after one year,
12USD /year
6. Support multi-language, and different countries of the socket
If you are interesting our digital signage smart box ,you can sent
us offer,
we are factory, we can also make the box as your needs,you can sent
us picture which you need
Details Show
* Built-in pearl cotton + thickened carton
